An alternative cloud printing option to receipt printer, different in function, same in stability
| Main body
|
|
|---|---|

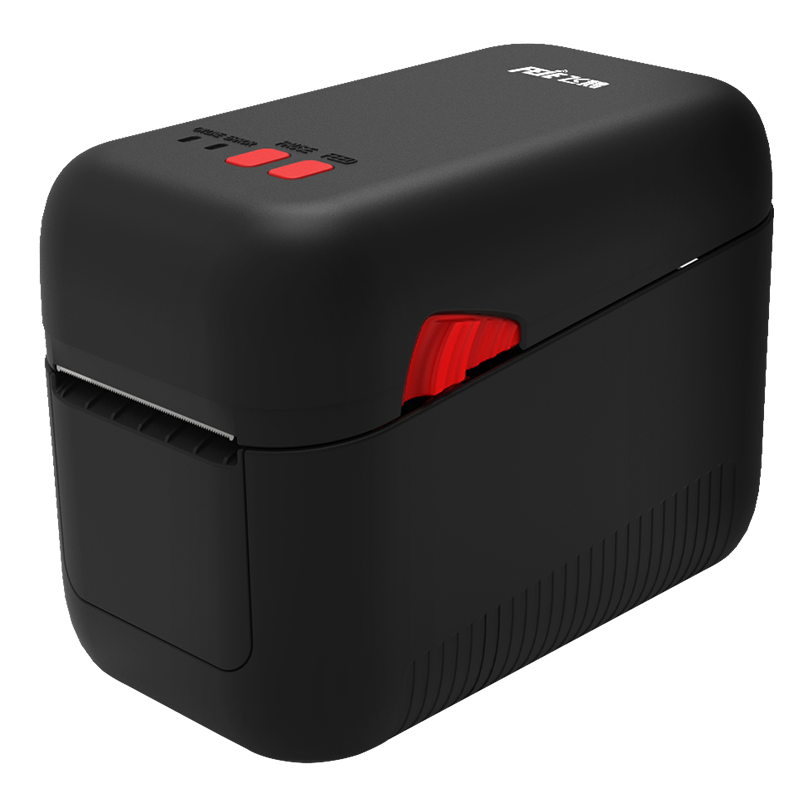

| Name | FEIE Smart Label Printer |
| Model | FP-N20-W，FP-N20-H |
| Interface type | WiFi、4G、USB |
| Order way | Internet network interface/Mobile application |
| Integrated way | API/ Driver integration |
| Built-in voice | Human voice |
| External speaker | support |
| Print
|
|
|---|---|
| Printing mode | thermal |
| Resolution | 203DPI |
| Paper drawing method | Before the paper |
| Tearing way | Manual tearing using the serrated edge |
| Maximum print width | 56 mm（max） |
| Graphics | Image files including QR codes, barcodes, LOGOs, monochrome PCX and BMP files etc. |
| Paper size | Roll/label width: Label mode: 25-60mm (width), less than 120mm (length). Ticket mode: 58mm. Paper roll/label diameter: maximum 100mm |
| Print point density | Label mode: 448dots/line(maximum), ticket mode: 384DOTS /line |
| Factory default | 40 mm(width) * 30 mm(length) |
| Printing paper | Thermal papers/stickers |
| Paper shaft diameter | Maximum 100 mm |
| Printing speed | Maximum 127mm/s, normal 101mm/s |
| Bar code | 1D Code (Code 128/ Code 93, etc.) 2D Code (QR Code) |
| Typeface | Label pattern： 8×12 dot dot, 12×20 dot, 16×24 dot, 24×32 dot, 32×48 dot, 14×19 dot OCR-B, 21×27 dot OCR-B, 9×17 dot, 12×24 dot, traditional Chinese 24×24Font(Big-5 code), simplified Chinese
24×24Font(GB code), Korean 24×24Font(KS code). Paper pattern： ANK character; Font A: 1.5×3.0 mm (12×24 points); Font B 1.1× 2.1mm (9×17 points); 3.0 x 3.0 mm (24 x 24 dots) |
| Font library | GB18030 |
| Paper out sensor | Out of paper alarm |
| color | black |
| USB print | Support ESC/POS instruction printing, SUPPORT TSPL instruction printing, drive printing |
| Physical properties
|
|
|---|---|
| The power supply | Input AC 100v / 240v ~ 1.0A, 50 ~ 60hz |
| Power adapter | DC12V/3A |
| Weight | 710 g |
| External dimension | 198 mm * 110 mm * 143 mm (length * width * height) |
| Working environment | Temperature：5 ℃~45 ℃ ，humidity≤90%（No condensation ） |
| Storage environment | Temperature：-10～60℃ , humidity：10～90%（No condensation ） |
| Indicator light | Power light (red), Network light (blue), module indicator light (yellow) |
| Install | Level |
| Bar code | Label pattern： Code39,Code128, UPC-A, UPC-E, JAN8/EAN 8, JAN13/EAN13,Code93, ITF,CODABAR Paper pattern：CODE39/CODE128/EAN128/ITF/CODE39/EAN13/EAN13+2/EAN13+5/EAN8/EAN8+2/EAN8+5/CODEBAR/UPC-A/UPCA+2/UPCA+5/UPC-E/UPCE+2/UPC-E+5 |
| Support language | Simplified Chinese, traditional Chinese, English |
| The print head life | 50 km |
| Cutter life | 1 million times |
| Product certification | 3C |
| Quality standard | ISO9001 |
